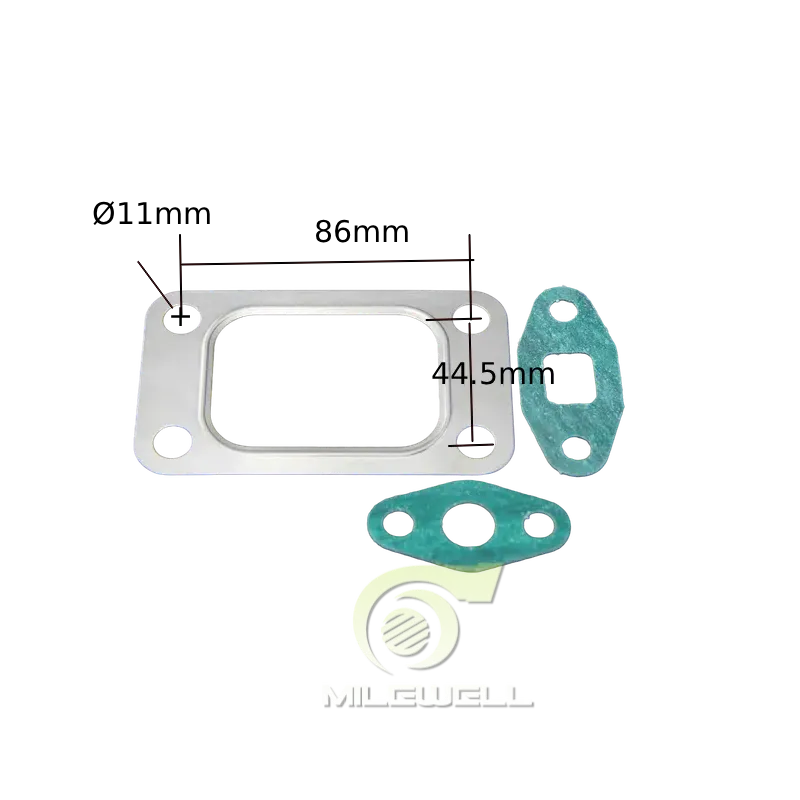

FLANGE TYPE- Standard T3 Flange
BOLT HOLE DIAMETER- 11.00 mm
HORIZONTAL BOLT SPACING(Center to Center)- 86.00 mm
VERTICAL BOLT SPACING (Center to Center)- 44.50 mm
MATERIAL- High-Grade 304 Stainless Steel
APPLICATION – All standard T3, T3/T4 Hybrid, and GT30/GT35 series turbochargers with a T3 turbine housing

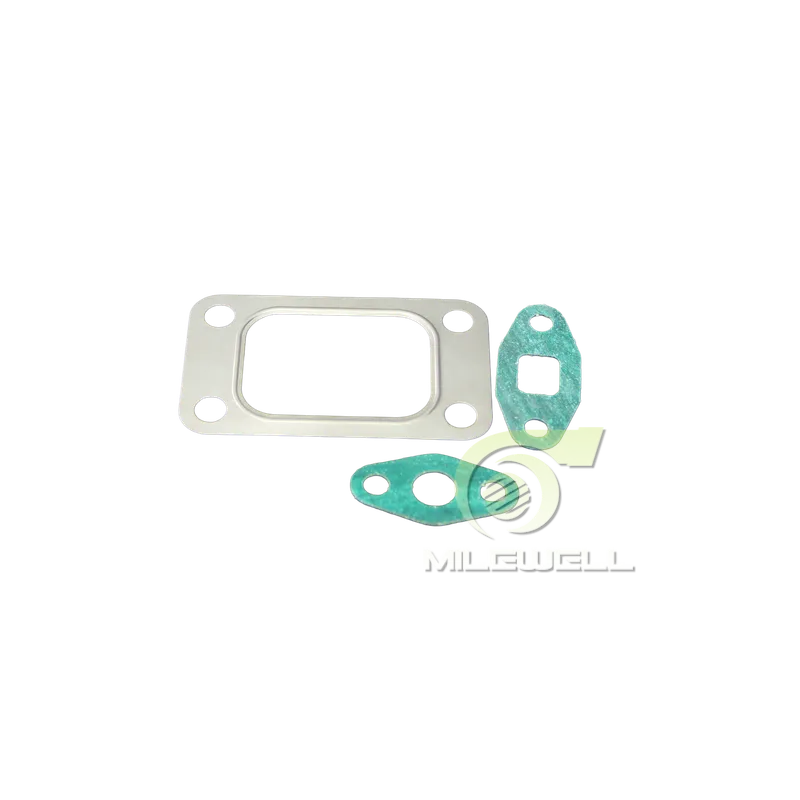

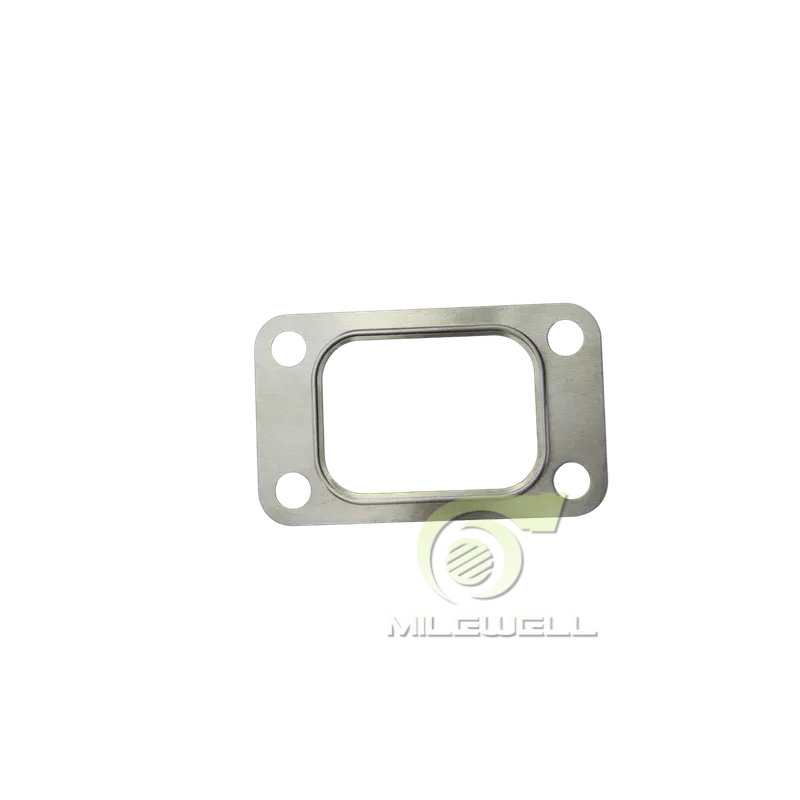

This T3 turbo flange gasket is designed for the turbine housing inlet side of turbochargers using a standard T3 flange connection.
It is commonly used between the exhaust manifold and turbocharger turbine housing to help seal exhaust gas pressure during turbo installation, replacement or repair work.
