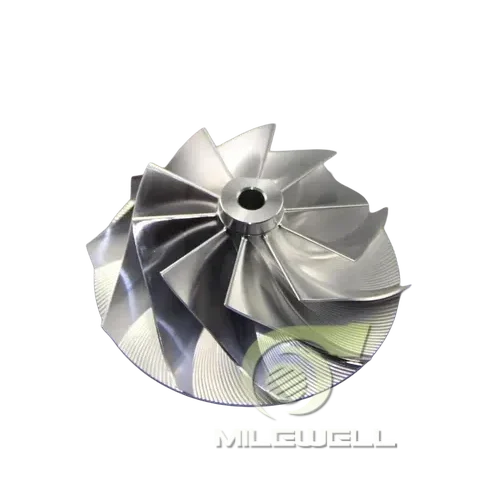

T04E turbo Compressor Wheel for Garrett trim 57 bore diameter 6.35mm

T04E 57-trim compressor wheel for Garrett turbocharger repair and rebuild applications. Features 56.50mm inducer, 75.00mm exducer, 6.35mm small stem bore and 6+6 dual-plane super-back design.

Wholesale Terms →

Request a Quote

Selected ProductT04E turbo Compressor Wheel for Garrett trim 57 bore diameter 6.35mm

Please fill out the form below, and we'll get back to you with a quote.

Fast reply · Low MOQ · 12-month warranty

This T04E 57-trim compressor wheel is designed for Garrett T04E turbocharger repair, rebuild and replacement applications. It is suitable for turbo rebuilders, performance workshops and aftermarket turbo parts suppliers working with T04E series turbochargers.

The wheel uses a 6+6 dual-plane blade configuration with a super-back profile and 6.35mm small stem bore size. It is used as a compressor side replacement wheel for matching T04E turbocharger assemblies.

Product Details

  • Product Type: Turbocharger compressor wheel
  • Turbo Model: T04E
  • Trim: 57 Trim
  • Wheel Type: Compressor wheel
  • Application: Garrett T04E turbo repair and rebuild

Specifications

  • Inducer Diameter: 56.50 mm
  • Exducer Diameter: 75.00 mm
  • Bore Size: 6.35 mm, small stem
  • Blade Configuration: 6+6 dual plane
  • Back Type: Super-back

Features

  • Replacement compressor wheel for Garrett T04E turbocharger applications
  • 57-trim wheel with 56.50 / 75.00mm size specification
  • 6+6 dual-plane blade design with super-back profile
  • Suitable for turbo repair shops, rebuilders and B2B aftermarket supply

This product is the compressor wheel only. It is not a complete turbocharger, CHRA, turbine shaft wheel, bearing housing or rebuild kit.
