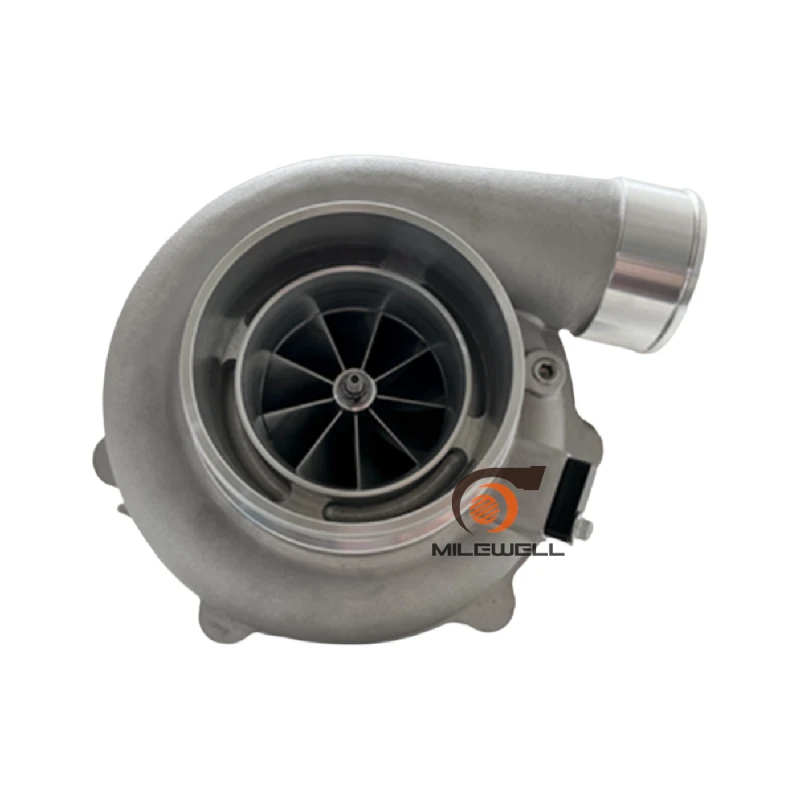

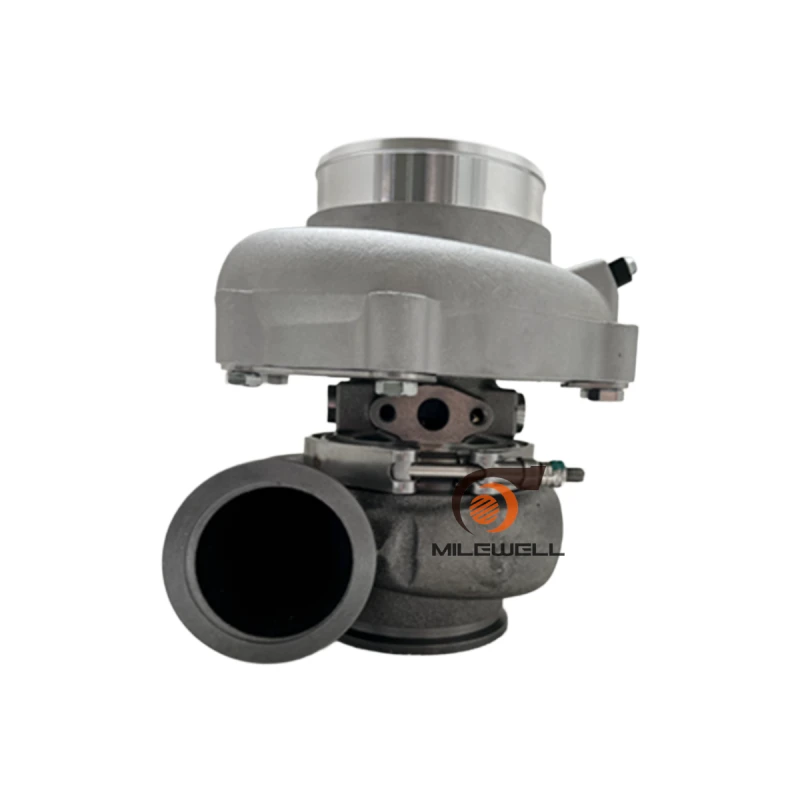

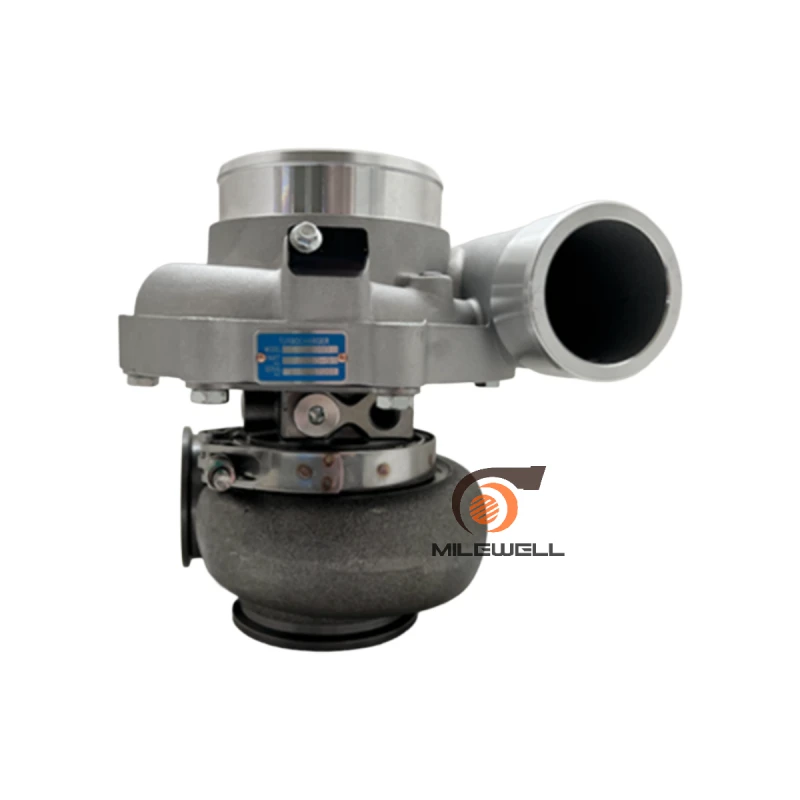

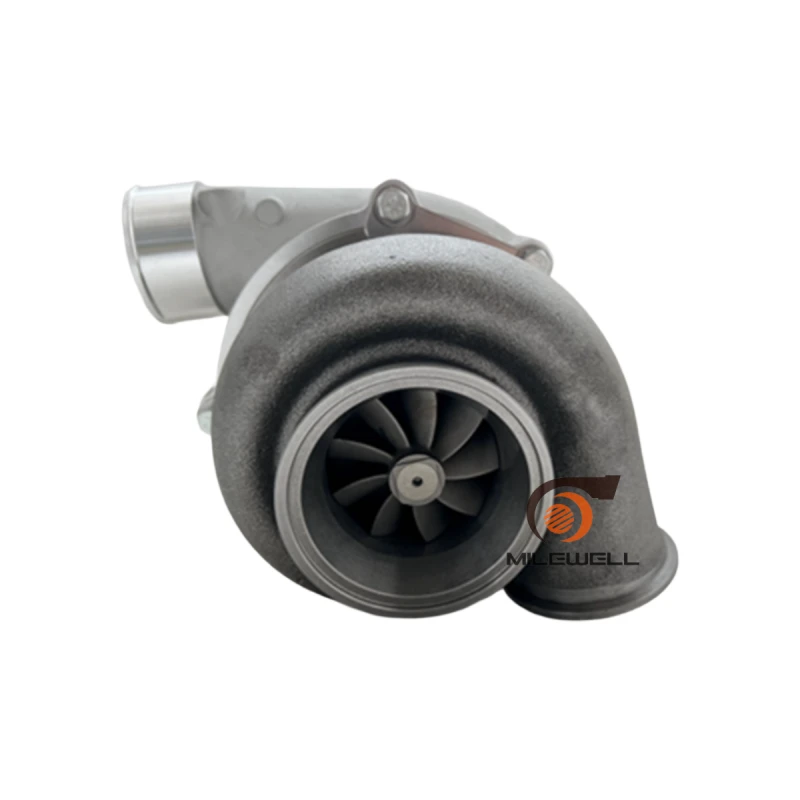

TURBO MODEL – GT35-1050
Compressor Housing : (Two)A/R.75 slotting+speed sensor
Compressor Wheel(in/out): Ф68.07-Ф84.44 (9+0Billet)
Turbine Housing : A/R.83
Turbine Wheel(out/in): Ф62.3-Ф68
Cooled: Water&Oil cooled
Bearing: Dual Ball bearing
Actuator: External
Inlet : V Band-76.2mm
Outlet : V Band-90.16mm
Remarks:
Turbine housing 4 type optional
1. A/R.83,2-V BAND;
2. A/R.83,T3,V BAND;
3. A/R1.01,2-V BAND;
4. A/R1.21,2-V BAND
